Klark Teknik 8-Channel Active Microphone Splitter

In Stock Condition A

Price / MOQ

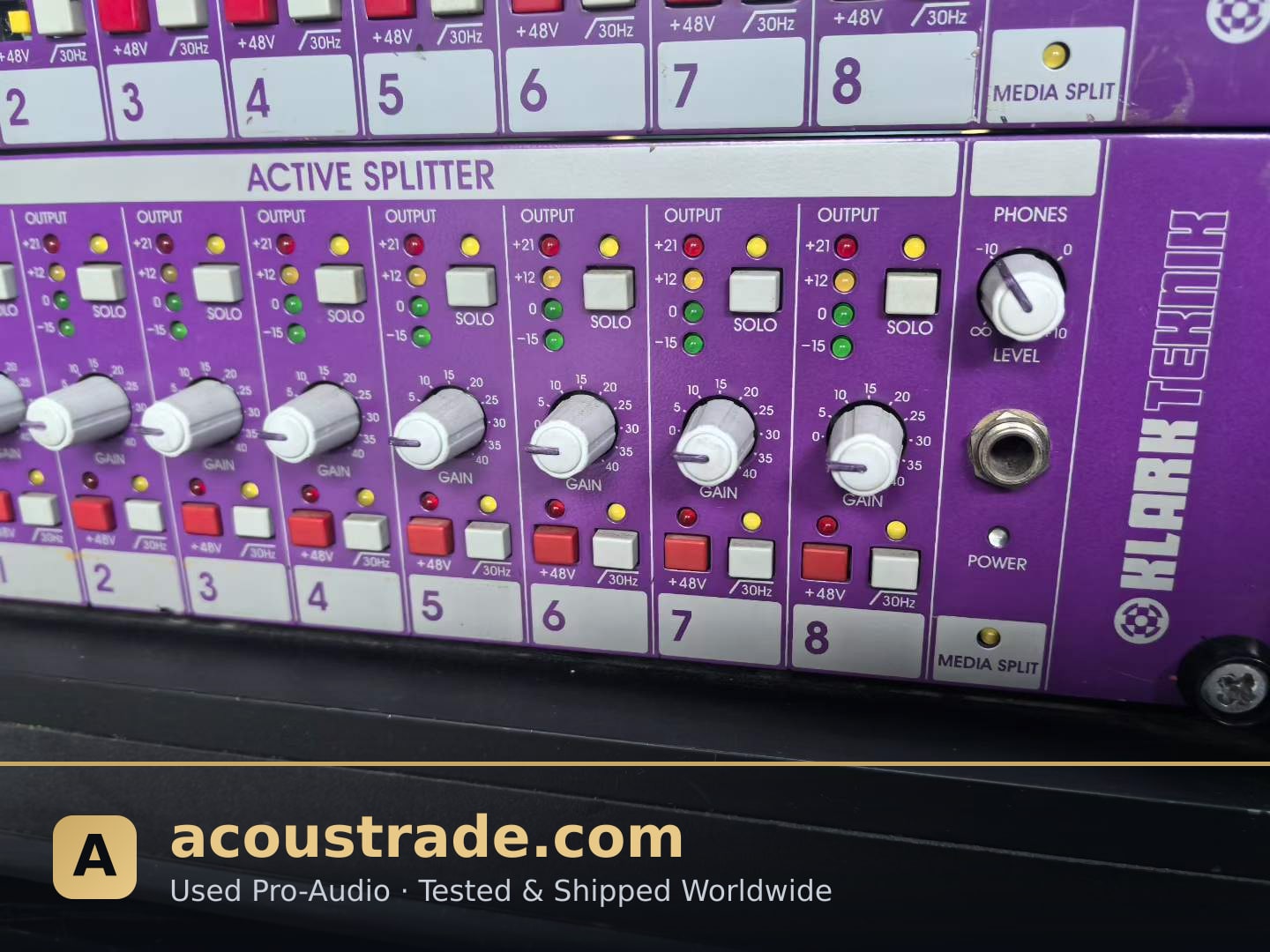

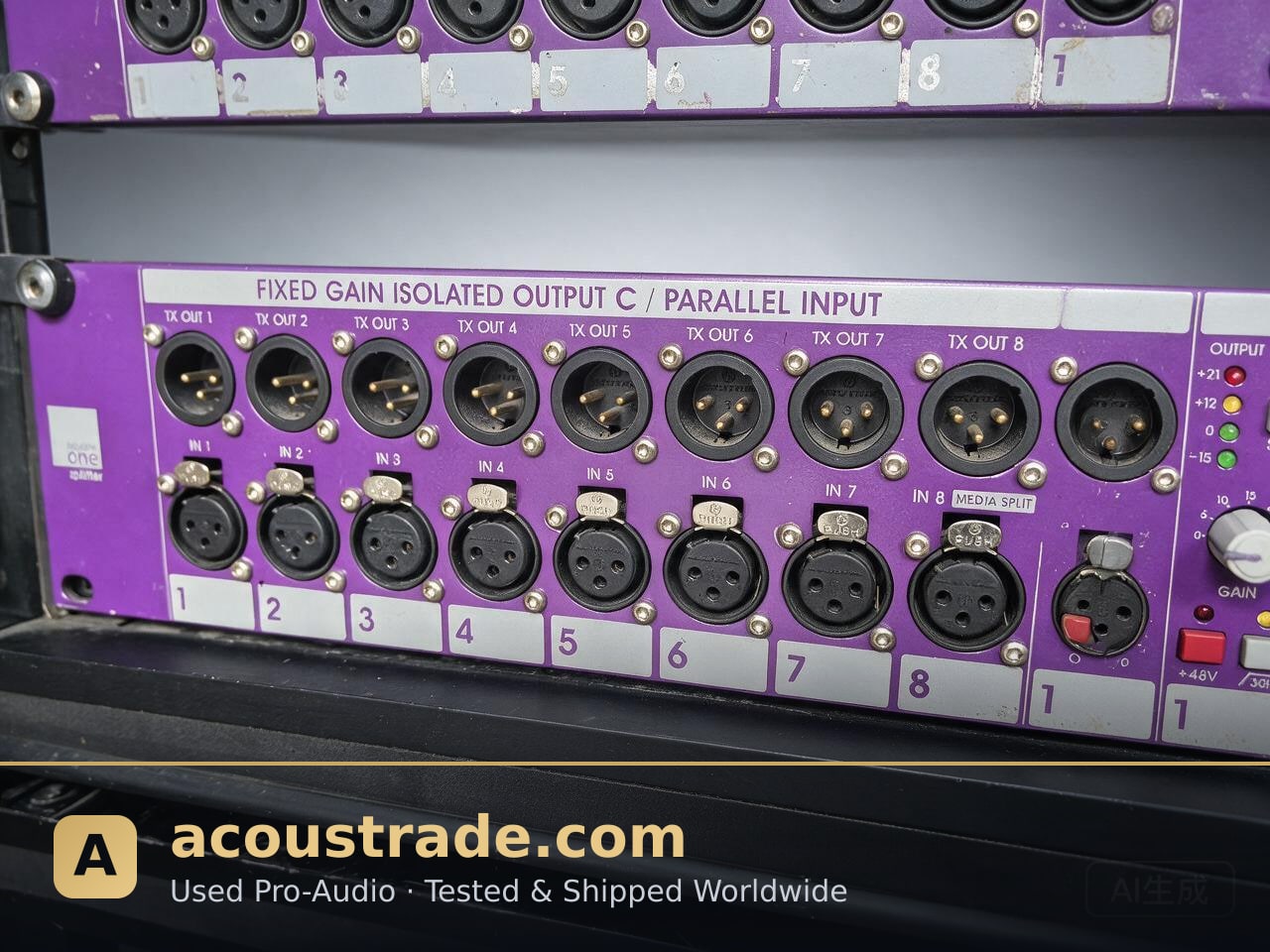

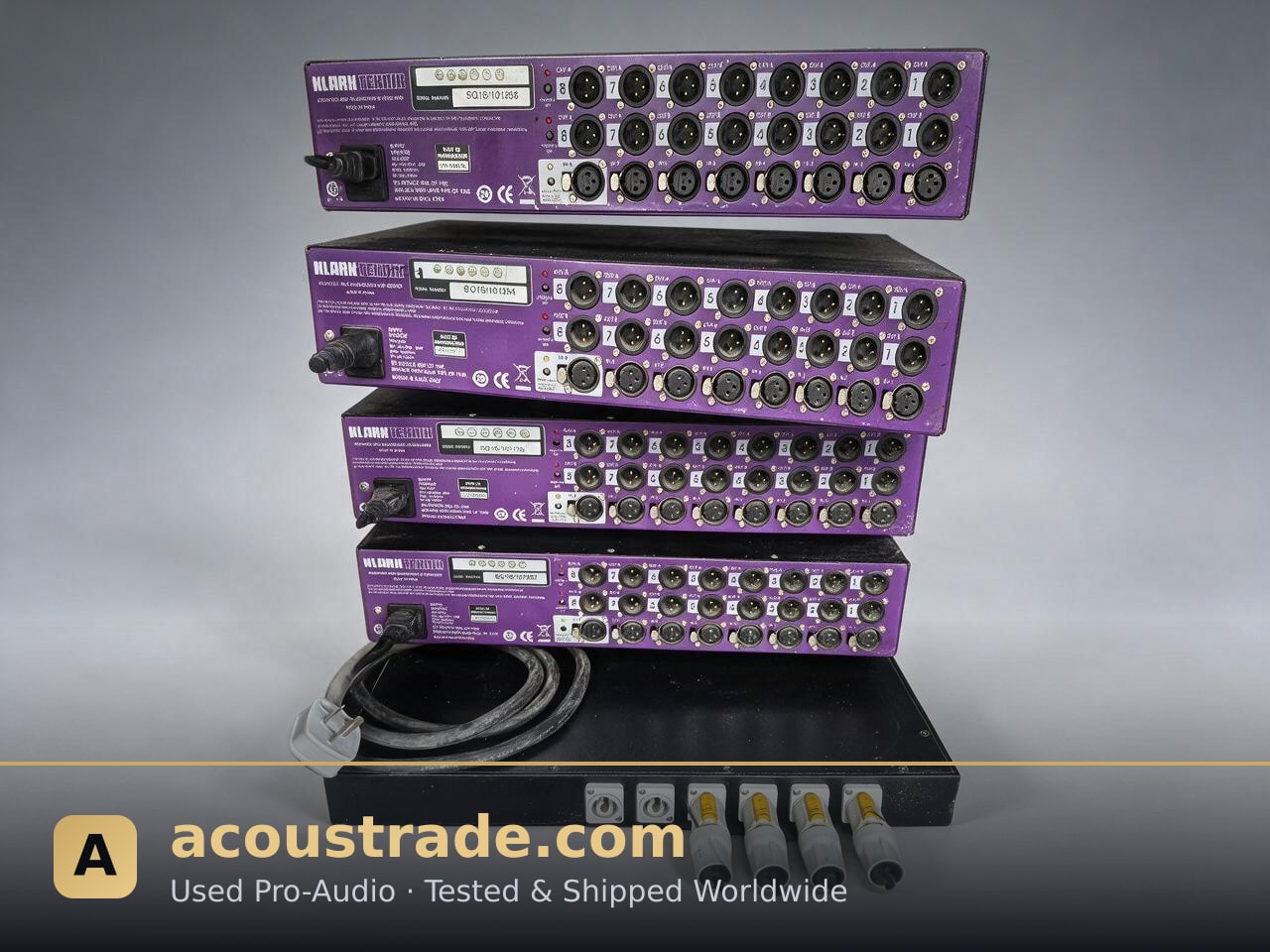

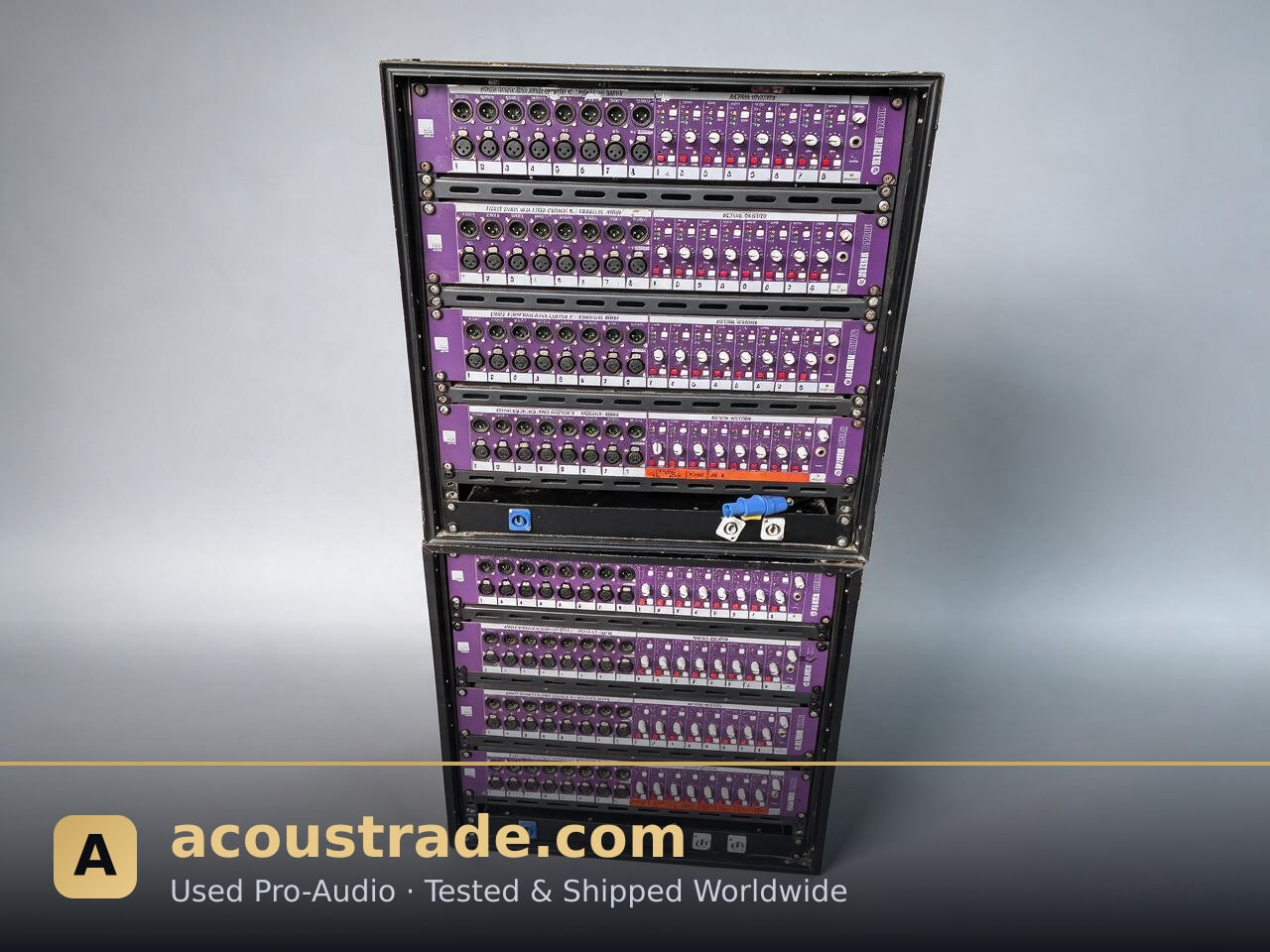

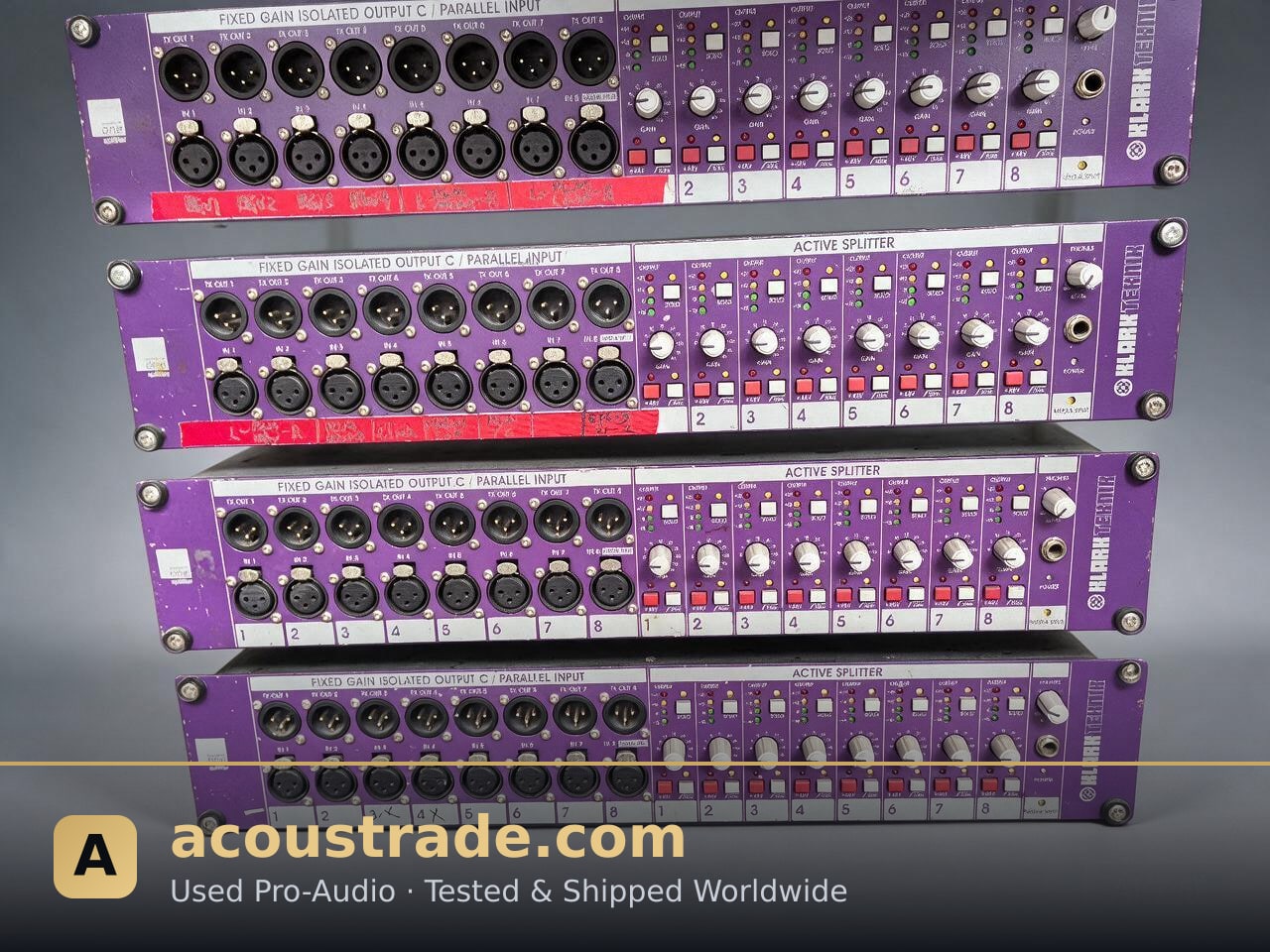

The Klark Teknik 8-Channel Active Microphone Splitter is a rackmount unit designed to distribute eight microphone signals to multiple destinations. Each channel offers an XLR input, XLR TX output, XLR OUT A and OUT B outputs, plus a fixed-gain isolated output C for parallel input. Per-channel controls include +48V phantom power, a 30Hz high-pass filter, gain adjustment, and a SOLO button, with output level LEDs for monitoring. The front panel also provides a PHONES output with level control and a MEDIA SPLIT button. Units are housed in black rack cases with purple front panels and show signs of previous use.

Request Quote

Specifications

Channels	8
Inputs	8 XLR inputs
Outputs	8 XLR TX outputs, 8 XLR OUT A outputs, 8 XLR OUT B outputs
Isolated Outputs	8 XLR fixed gain isolated output C
Splitter Type	Active splitter
Phantom Power	+48V per channel
High-Pass Filter	30Hz per channel
Gain Control	Per channel rotary gain
Metering	Output level LEDs (+21, +12, 0, -15 dB)
Headphone Output	PHONES output with LEVEL control
Special Features	SOLO button per channel, MEDIA SPLIT button
Power Input	IEC mains inlet
Form Factor	Rackmount
Condition	A (used, tested working)
